AREB SMART VIDEO DOORBELL
70IMAR00
Weather Proof
Two-way
Talk
Remote Viewing
Night Vision
100° ULTRA WIDE VIEWING ANGLE
Features
Installation
Wall hanging, desktop
Sensor
1/2.9” CMOS
Resolution
2MP, 1920(H)*1080(V)
Frame
1080P*15fps
PIR distance
5m
Focal length
2.8mm
Lens angle
100°
Video compression format
H.264
Compression bit rate
128 Kbps~2Mbps
Local Storage
Yes, micro SD card (up to 64GB)
Cloud Storage
Optional
Audio
Two-way audio
Battery
18650 Rechargeable battery*2pcs (optional)
Smart alert
PIR detect
Power supply
DC5V/1A
Wi-Fi antenna
2.4GHz
Waterproof rate
IP32

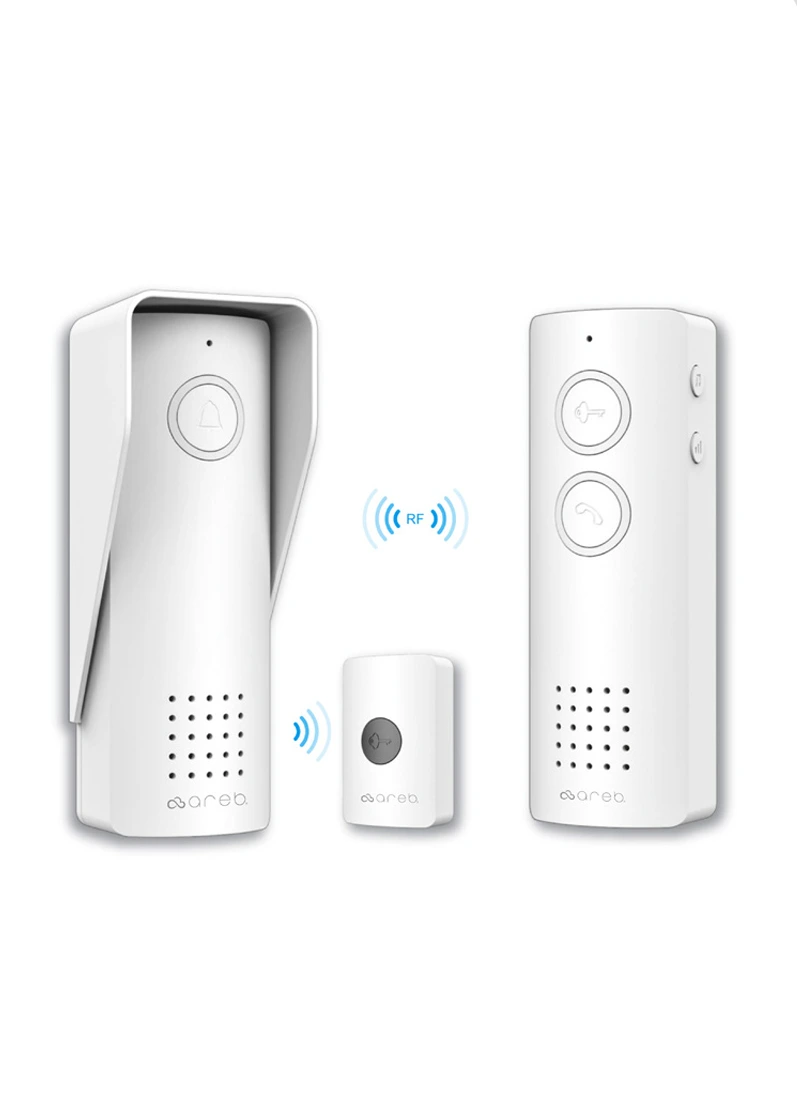

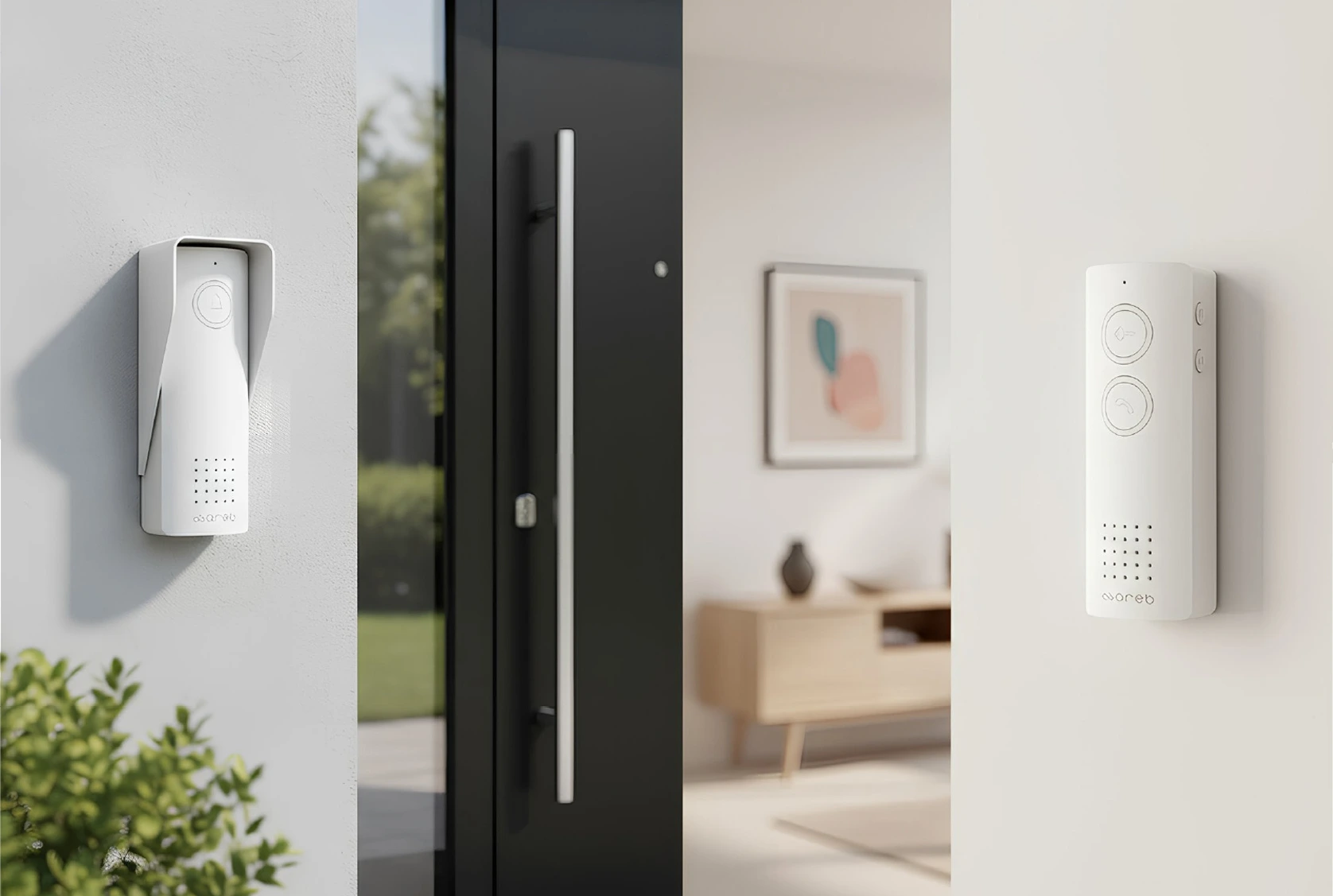

AREB SMART WIRELESS INTERCOM
51DBRL8L
Weather Proof
Two-way
Talk
Remote Viewing
Night Vision
100° ULTRA WIDE VIEWING ANGLE
Features
Indoor Unit
Battery
Lithium battery DC3.7V/2200mAh
Charging Power
DC5V/1A
Standby Current
<1mA
Working Current
<300mA
Call Time
40s
Talk Time
120s
Wireless Frequency
426-440 MHz
Wireless Distance
≥300m (Open area)
Dimension
154(H)*54(W)*36(D) mm
Operating Humidity
10%~90%(RH)

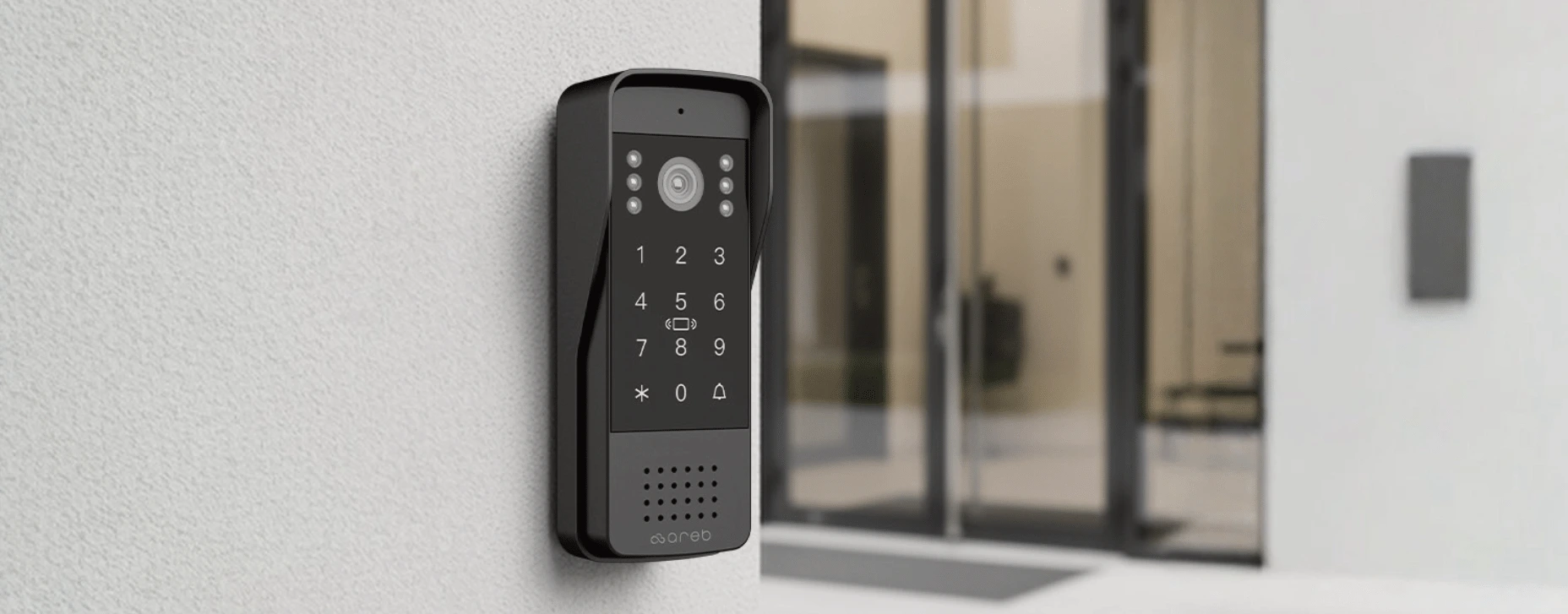

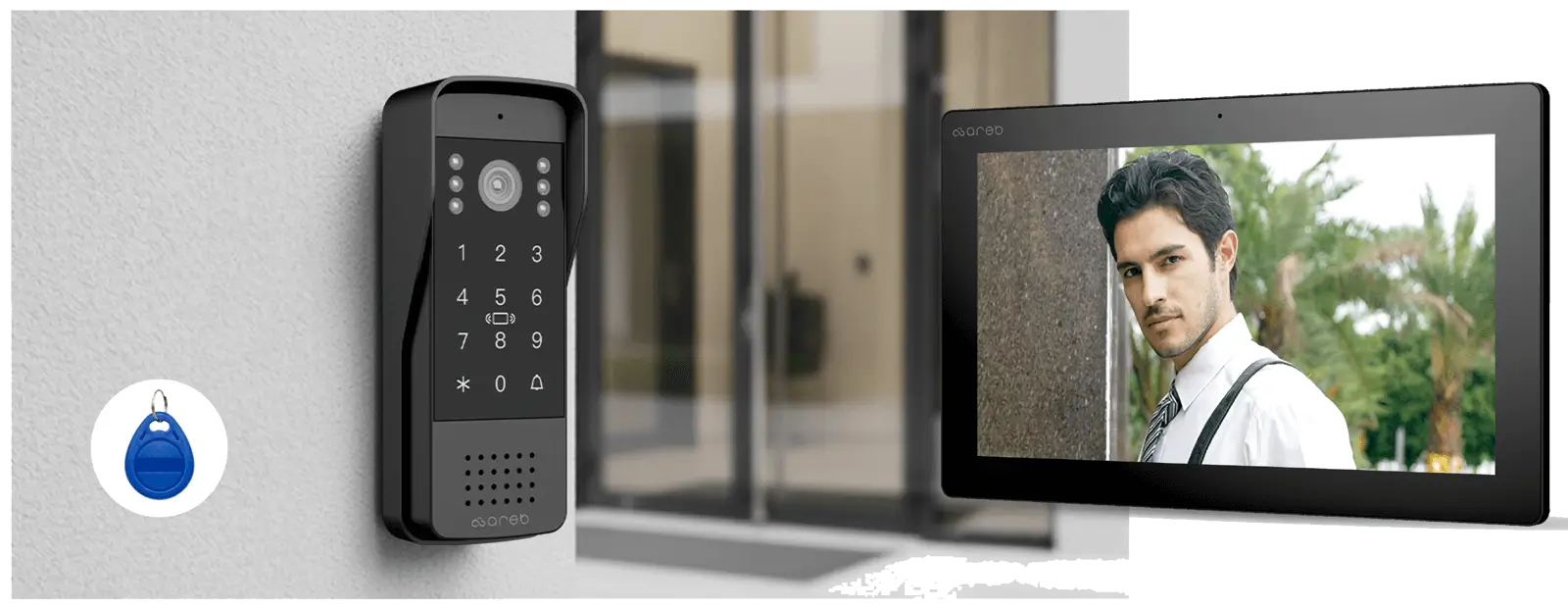

AREB SMART VIDEO INTERCOM SYSTEM 10”(BLACK)
OBIMRLID
Door phone
Megapixel
Password Unlock
IC Card Unlock
Night Vision
Features
Video resolution
Camera 2 million pixels
Power Consumption
Static State<0.5 W, Working State<6W
Material
Aluminium + glass panel
Lock Connection
No additional power supply needed
Unlock Method
1. Tap unlock button on screenduring talking
2. Password
3. Exit button
4. IC card
Outline Size
172(H)*67(W)*38.8(D) mm
Relative Humidity
10%~90% (RH)
Touch type
Capacitive touch
Night vision LED
650/940/850nm (optional)
Talk Volume
≈80dB
Viewing Angle
Horizontal 120°
AREB SMART INTERCOM OUTDOOR UNIT (BLACK)
LBIMRLID
Door phone
Megapixel
Password Unlock
IC Card Unlock
Night Vision
Features
Video resolution
Camera 2 million pixels
Power Consumption
Static State<0.5 W, Working State<6W
Material
Aluminium + glass panel
Lock Connection
No additional power supply needed
Viewing Angle
Horizontal 120°
Outline Size
172(H)*67(W)*38.8(D) mm
Relative Humidity
10%~90% (RH)
Touch type
Capacitive touch
Night vision LED
650/940/850nm (optional)
Talk Volume
70~80dB ( 30cm )
Unlock Method
1. Tap unlock button on screenduring talking
2. Password
3. Exit button
4. IC card

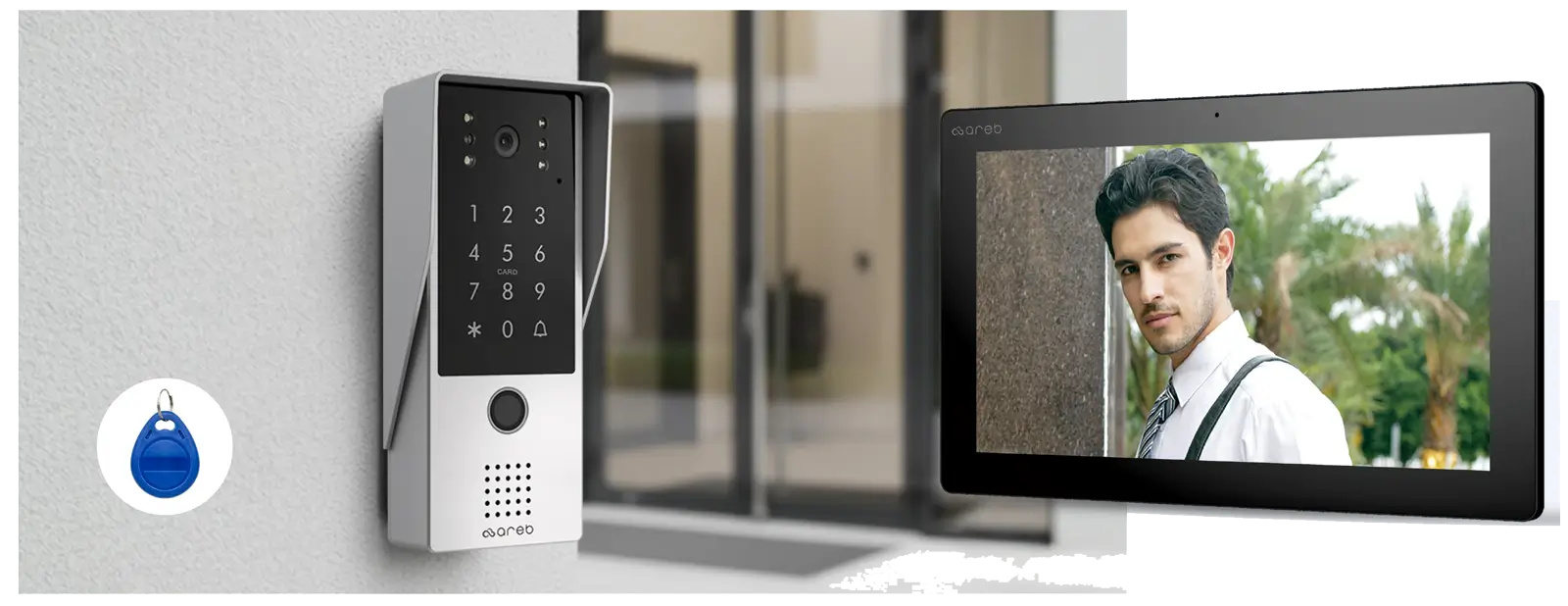

AREB SMART VIDEO INTERCOM SYSTEM 10”(SILVER)
OFIMRLID
Fingerprint Unlock
Door phone
Megapixel
Password Unlock
IC Card Unlock
Night Vision
Features
Video resolution
Camera 2 million pixels
Power Consumption
Static State<1 W, Working State<3.5W
Material
Aluminium + glass panel
Lock Connection
No additional power supply needed
Viewing Angle
Horizontal ≥80°
Outline Size
86(W)198.8(H) 50.8(D)mm
Relative Humidity
10%~90% (RH)
Touch type
Capacitive touch
Night vision LED
940 nm (Infrared)
Talk Volume
70~80dB ( 30cm )
Ringback Tone Volume
60~70dB ( 30cm )
IP Rating
IPx4
Unlock Method
1. Tap unlock button on screenduring talking
2. Password
3. Fingerprint
4. Exit button
5. IC card

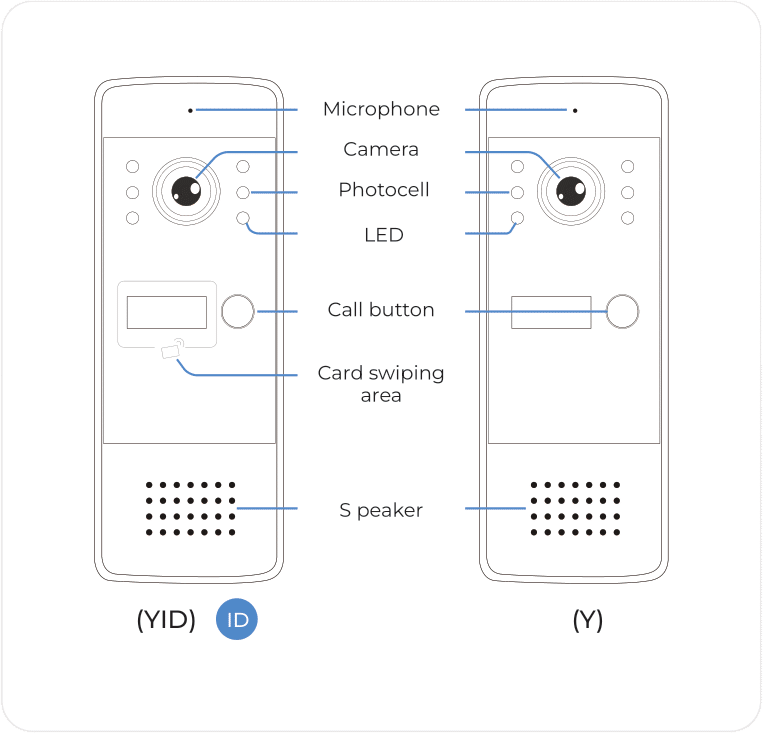

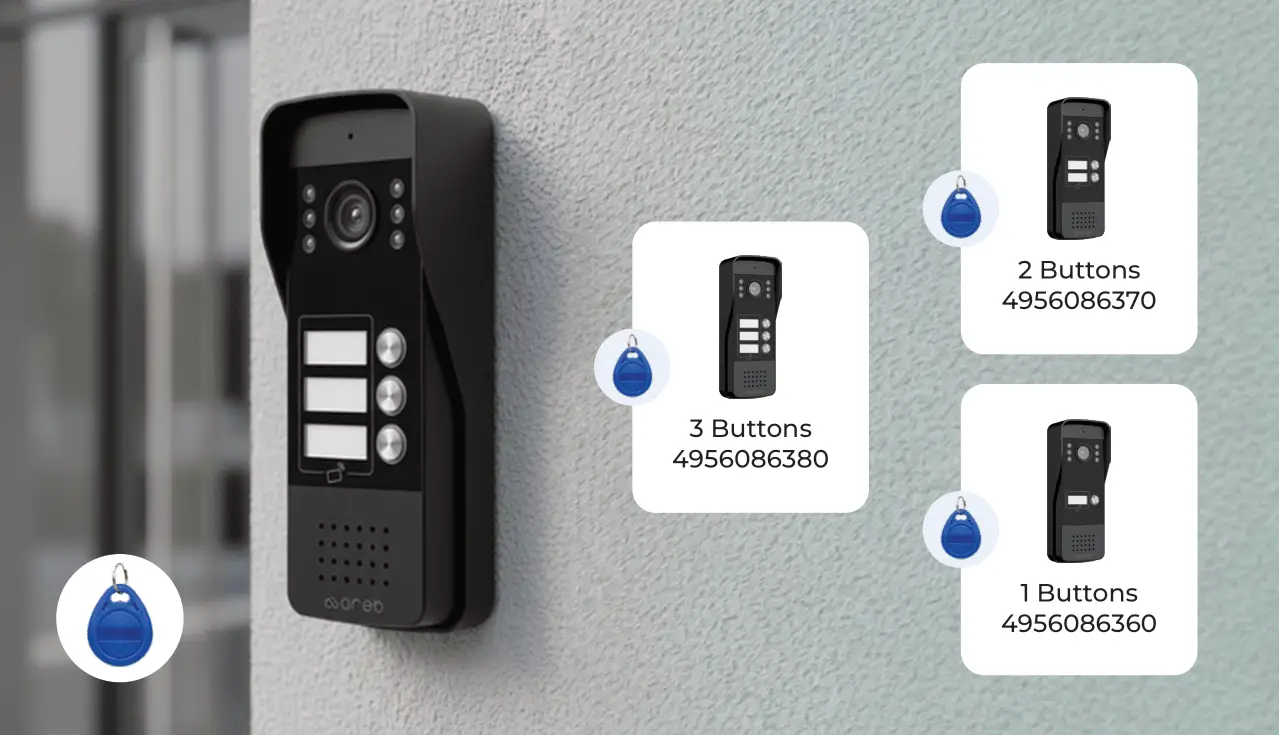

AREB SMART INTERCOM OUTDOOR UNIT (BLACK)
LYIMRLID
Door phone
Megapixel
Number of users
IC Card Unlock
Night Vision
Features
Video resolution
Camera 2 million pixels
Power Consumption
Static State<1 W, Working State<5W
Ringback Tone
<65 dB
Max ID Card Amount
4.1000
Unlock Method
1. Tap unlock button on
screen during talking
2. Exit button ID
3. ID card
Outline Size
172(H)*67(W)*38.8(D) mm
Relative Humidity
10%~90% (RH)
IP Rating
IPX5

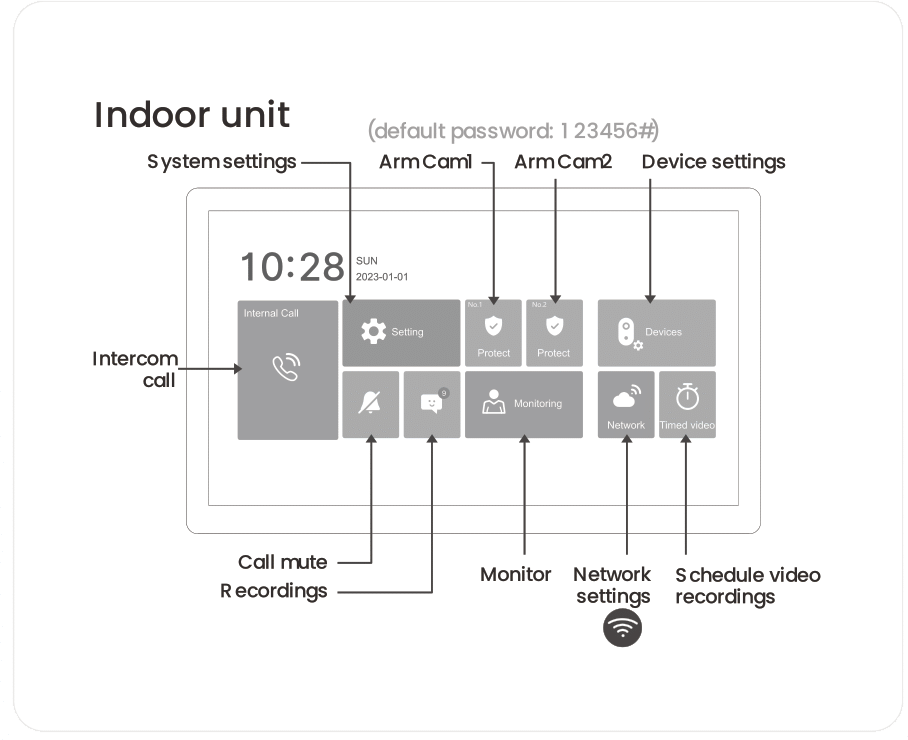

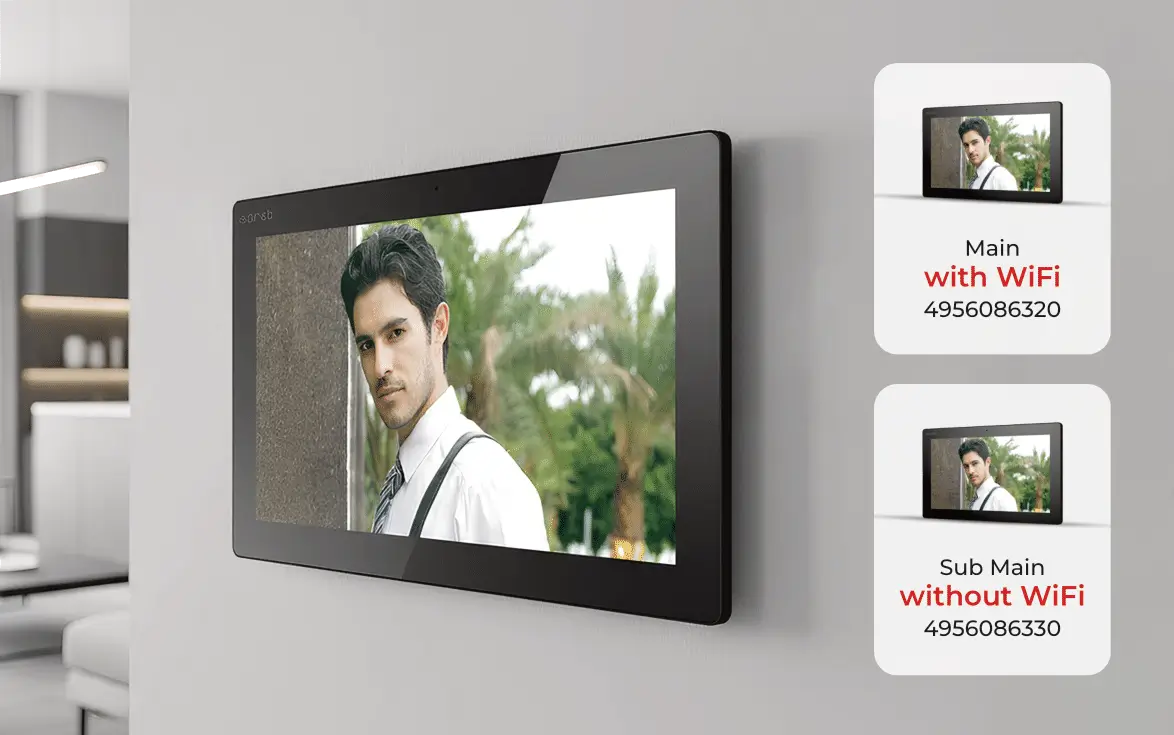

AREB SMART VIDEO INTERCOM SYSTEM INDOOR UNIT
10IMRLMU
Wi-Fi
Connectivity
Photo Taking
Video Recording
Motion
Detection
Door phone
2 Entrance Control
Monitor
Voice Message
Features
Adapter
Input: AC100-240V
50/60Hz
Output: DC12V 2A
Power Consumption
Static State<2 W, Working State<9W
LCD dimension
10.1” MIPI interface
TF card
16GB/32GB/64GB （FAT format（ 128GB/256GB（exFAT format（ >=CLASS 10
Network
Frequency: 2.4GHz&5GHz
protocol: 802.11a/b/g/n/
ac/ax
Network cable
connection
Video
Video input : AHD Pixels : 2.0MP (default) : 1.3MP, 1.0M
Relative Humidity
10%~90% (RH)
Touch type
Capacitive touch
Night vision LED
650/940/850nm (optional)
Talk Volume
≈80dB
Viewing Angle
Horizontal 120°
