Smart Control Screen
Smart Control Screen Products
Scene and Automation
Two-way
Relay
Multi-mode Gateway
Device
Control

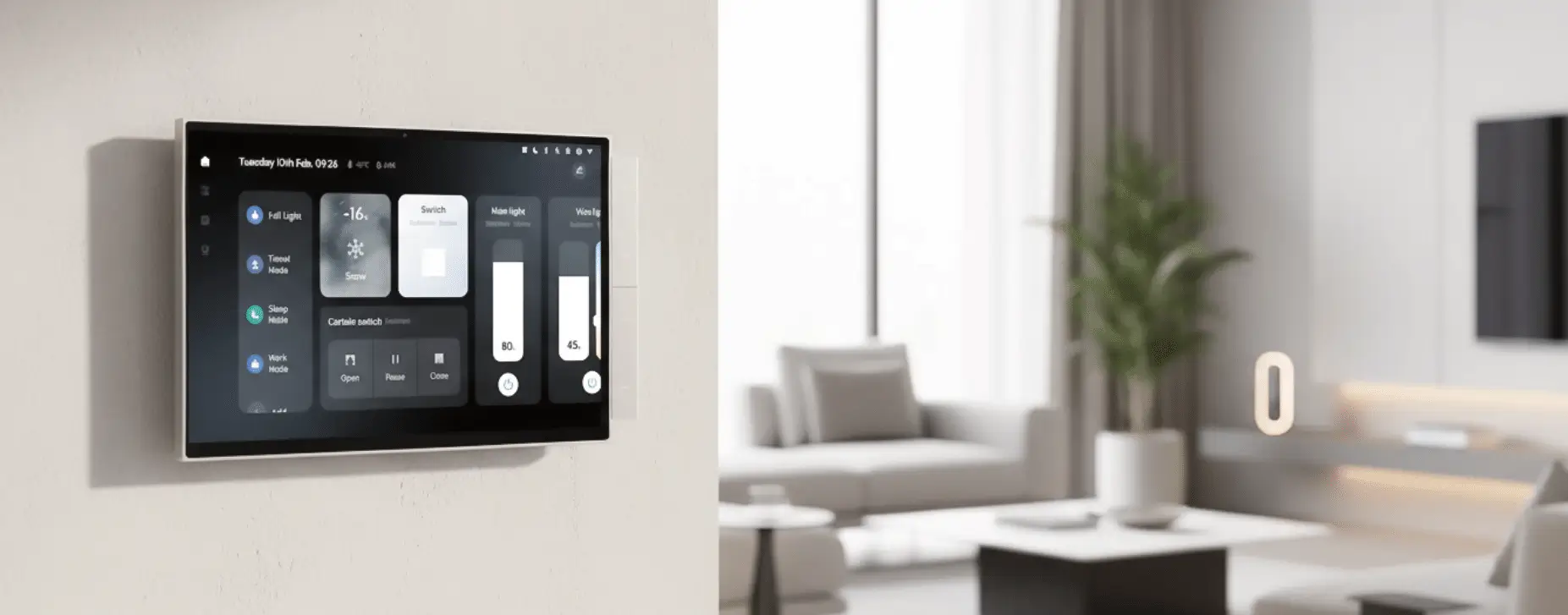

AREB SMART CONTROL TOUCH SCREEN 10”
TPA10M2A
Features
Touch control / physical button / voice control / APP control
Input
100 -240V~, 50/60Hz
Working temp
0 -40°C
Working hum
5%-90%RH (non-condensing)
Storage
2GB RAM/8GB ROM
Audio
Speaker*2/Microphone*2
Resolution
1920*1200 IPS
Screen Size
10.1 inches
Wireless Protocol
Wi-Fi (IEEE 802.11b/g/n)/Zig- bee3.0/ Bluetooth 4.2/Bluetooth 5.0BLE/BLE Mesh
Sensors
TOF proximity sensing/ambient light sensing/temperature and humidity sensing
Operation Mode
touch control/physical button/voice control/ APP control
Product Size
259*161*13mm (excluding base)
259*161*37mm (including base)
AREB SMART CONTROL TOUCH SCREEN 3.7” - 3 GANG
TPA03M3UN
Features
APP / Touch
Input
100 – 240 Vac, 50/60 Hz
Wireless Protocol
Wi-Fi, SIG Mesh, IR
Maximum Load
0-40°C
Operating Temperature
5% - 90 RH% non condensing
Operating Humidity
5% to 90% RH (Non condensing)
Dimensions
86*86*11.5 mm (excluding base)
86*86*35.5 mm (including base)
Net Weight
153 g

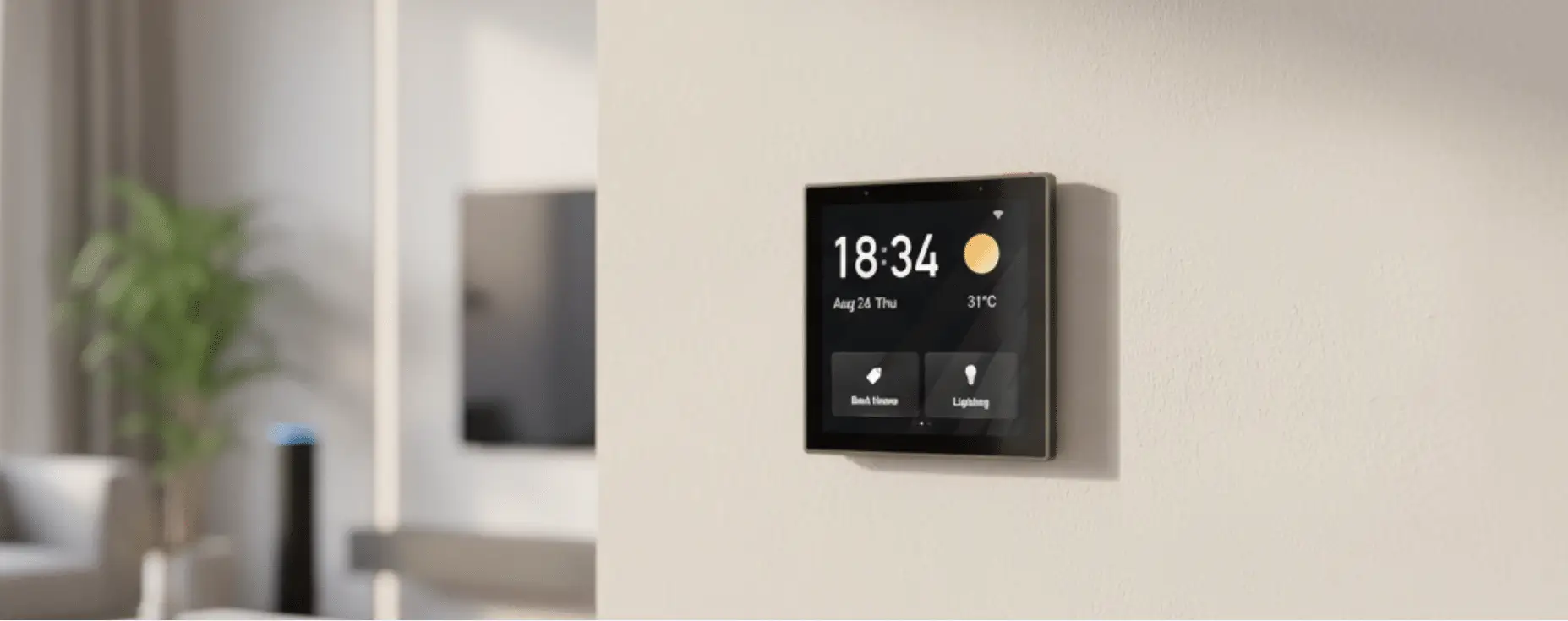

AREB SMART CONTROL TOUCH SCREEN 4”
TPA04M3UN
Features
APP / Touch
Input
100 -240V~, 50/60Hz
Rated Current
84 mA
Wireless Protocol
WiFi, Bluetooth, Zigbee
Working Temperature
0-40°C
Working Humidity
5% - 90 RH% non condensing
Dimensions
86*86*10.5 mm (excluding base)
86*86*36.3 mm (including base)
Net Weight
223 g
